Obsidian 9.0 Tiny Home

The Obsidian has been built with practicality in mind and attention to detail. The hardwood adds a touch of luxury and emphasises the connection to nature.
Ideally suited for a weekender.. AirBnb.. Or couples escape to capture the essence of the outdoors with perhaps a crackling camp fire under the stars.

  • Charnwood Aire 3 wood stove gives both a cozy atmosphere and sustainable heating

  • Cypress floors bringing warmth and character to the interior

  • Comfort glass windows provide energyefficiency and ample natural light

  • Luxurious outdoor bath and back deck toimmerse yourself overlooking nature

  • Blackbutt benchtops throughout reflecting the elevated luxe vibe

  • Soaring 2.7 raked ceilings providing a sense of light and space throughout

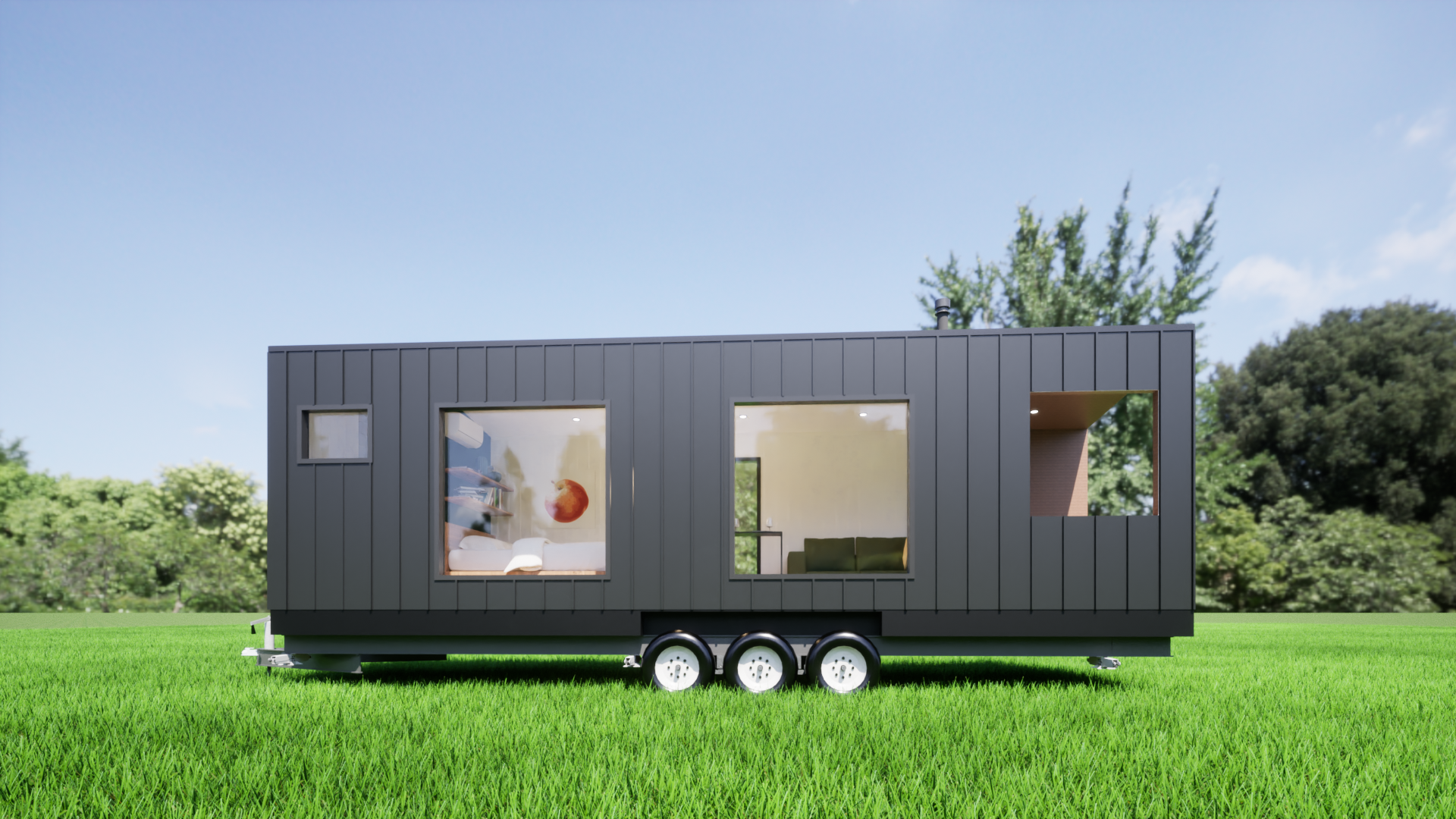

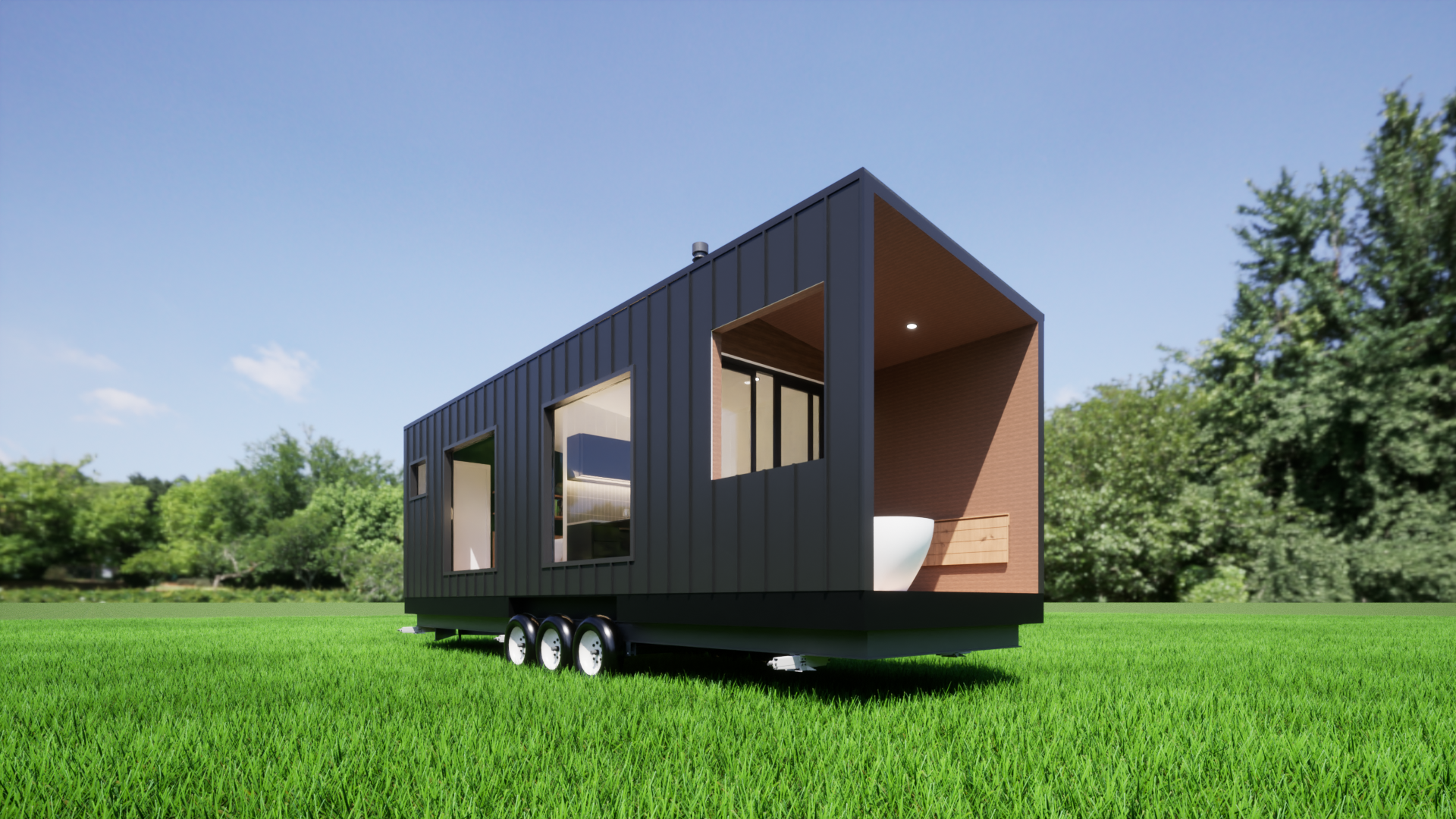

Disclaimer : Images below are renders of the Obsidian and are not the completed product.

Specifications:

  • 9.0m x 2.5m wide by 3.66 high

  • Floor space internal 16m2/external 4m2

  • Draw bar length 1.9m

  • Built by Licensed Builder: Trendy Tiny Homes 2024

  • Licenced & qualified trades

  • Gas, plumbing and electrical compliance certificates

Construction:

  • 4.5t tri axle with electric brakes

  • Flat deck galvanised trailer built by Sunny trailers with Bluescope steel

  • Breakaway system

  • 2 x swing down support legs at rear

  • 2 x removable jacks at front door

  • Trimdek colorbond roofing in surfmist

  • Trimdek colorbond wall cladding in night sky

  • Western red cedar, tongue and groove to rear deck and walls/ceiling

  • Comfort plus windows throughout, incl screens

  • 3 panel sliding door

  • 100mm groove board to interior walls

  • James Hardy builders wrap barrier

  • Underfloor insulation total of R1.0 with timber battens to reduce thermal transfer

  • Earth wool wall insulation total value R2.0

  • Insulated panel to ceiling

  • Switchboard in kitchen overhead

  • Provisions for solar

  • Powerpoints with USB points

  • Exterior all taped and sealed to prevent water ingress and airflow

  • Pine architraves to internal windows and skirtings

  • Cypress Pine tongue and groove floorboards 140w x 22mm thick

  • 70 x 45 MGP10 Treated pine timber

  • 12 mm galvanized threaded rod used as tie downs x 10

Kitchen:

  • Double hung window with screen 1800 x 600

  • Satin Black cabinetry and doors

  • Soft close hinges and drawer runners

  • Australian Blackbutt live edge benchtop

  • Black round sink 30L

  • Black gooseneck mixer and tap

  • Black door and drawer handles

  • 3 x double overhead cupboards 550h

  • 4 x small drawers hinged & door under sink

  • Additional bench pull out above drawers

Appliances:

  • Black fridge freezer bar fridge

  • Trinity 2 burner cooktop in black

  • 52cm matte black under mount rangehood

Living space:

  • Fixed panel window 1800 x 1800

  • Charnwood Aire 3 wood stove with flu

  • 3 panel sliding door 2100 x 2200

  • Polished granite hearth

  • Fire tools

Bedroom:

  • Tongue and groove cypress flooring

  • Fixed panel window 1800 x 1800

  • 2 x powerpoints with USB’s

  • Cypress pine tongue and groove flooring

  • Mitsubishi reverse cycle air conditioner 2.5kw

  • Space for a queen mattress and frame

Bathroom / Laundry:

  • OGO Composting toilet

  • Shower 1150 x 850

  • Harmony gooseneck square shower head with separate mixer

  • Round ceramic basin in black

  • Black mixer and tap

  • Mirror with LED lights anti fog

  • Towel rail

  • 2 x Sliding windows with screens 600 x 800

Rear deck:

  • Cedar shiplap lined walls and ceiling

  • 1200x1200 window opening adjacent bath for view

  • Freestanding bath tub 1580 length

  • Black tapware

  • LED dimmable strip lighting

  • Cypress pine tongue and groove flooring

  • Mitsubishi reverse cycle air conditioner 2.5kw

  • Space for a queen mattress and frame

Pricing:

$135,000 ex gst

Financing options available
